Grain grinder, high quality electric wheat corn grain mill grinder

Electric grain grinder is used for grinding all kinds of grains, dry flowers, herbs, and other materials. This grinding machine is made of high-quality stainless steel meeting the standard of food hygiene. High flexibility and easy operation make it suitable for the small-scale grinding process, suitable for any commercial kitchen. our machine use all the parts that are in contact with the material, are made of stainless steel, except for the motor and part of the parts.Therefore, it has good wear resistance, so that the material is not polluted, sanitary and clean.

Technical advantages:
1. This grinding machine is made of high-quality stainless steel; meet the standard of food hygiene.
2.  Different granule size can be achieved by setting the distance between the two revolving abrasive surfaces.
3. The discharge port is equipped with strong magnets to separate any possible metal powders from the product.
4. The machine body is compact, robust and easy to move.
5. Motor cover has rows louver at two sides, used for heat dissipation and reducing the vibration.

Small commercial grains grinder machine applications

Our grain grinder is mainly used for grinding wheat, rice, corn, sorghum, beans and etc. to be flour as your required sizes.

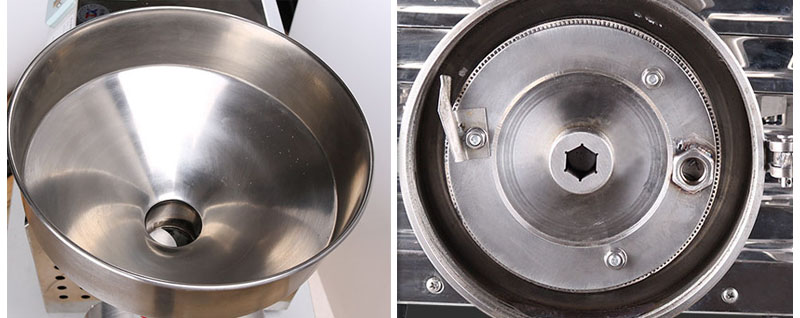

Stainless steel hopper of grain mill
This electricgrain mill has an extra-large hopper and its high-powered motor and reliable pulverizer make any grinding task really easy and ultra-fast. For safe operation, the overload protector stops the machine from overheating and ensures a long working life.

Working principle:

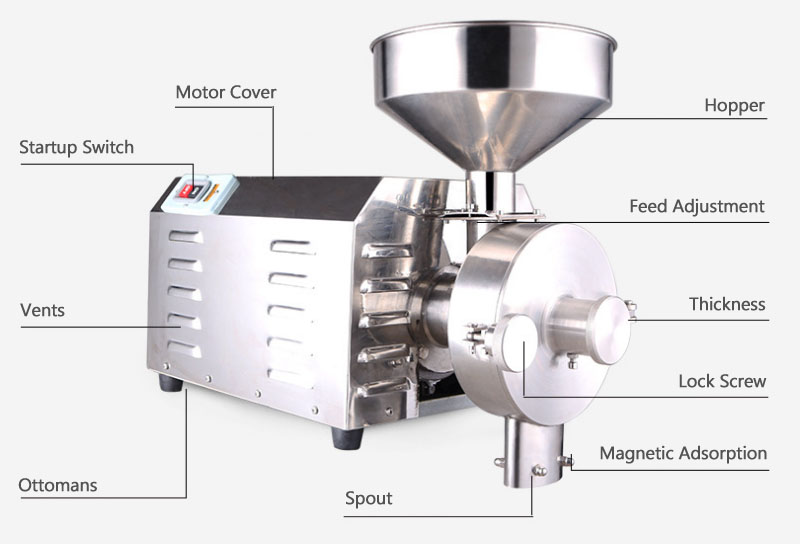

Grain grinder is a mini electric burr grinder. It consists of feeding hopper, drive motor, grinding chamber and magnetic discharge port. When the motor of small electric grain mill starts running, the connecting shaft and millstone connected with the shaft run together. The material is fed from the hopper into the grinding cover. Material is fed into the grinding chamber via the feed valve. With the high-speed rotating stainless steel burrs, material is rapidly milled into powder which is discharged via the magnetic discharge port. Different particle size of product can be achieved by setting the distance between the two revolving abrasive surface.

How to use the grain mill grinder correctly

1. Must equip with breaker protection device to protect the machine and personal safety;
2. Only for dry materials, the drier, the better grinding quality.
3. The grain mill should be placed on the horizontal, fixed and solid desktop or table, solid wood is better.
4. Since the motor of the grain milling machine would continue to generate heat after running, thus the mill should be put in a spacious and ventilated place, which is advantageous to the heat dissipation and cooling. If the mill need to be placed in the counter or box for aesthetic considerations, the space should be as large as possible and equipped with exhaust ventilation holes and fans, especially in summer of high temperatures, it is likely to lead to higher temperature rise of the motor.
5. Open the machine cover and fix the millstone on the connecting shaft. Press with millstone with two thumbs, if the millstone can stretch freely, it shows that the millstone matches well with the connecting shaft. Then, cover the machine cover, twist the lock nut, connect the power and turn on the switch to check whether the mill is running in the specified direction and whether the sound and vibration are normal. If there is any abnormal sound or vibration, the operator should stop and check the machine until everything is normal, then the grain mill can be restarted.
6. Start the power supply and run for one minute or so. Feed the material into the hopper and adjust the regulator to the proper position and open the feeding baffle to make the material flows slowly into the grinding chamber. Open the baffle a little bit small so as not to feed too fast, resulting in machine blocking. Common material should be ground
7. You should clean the internal part of the grinding machine if for a long time no use.

The grain grinder produced by our company are of stable quality, with few failures and simple operation. If you want to inquire about the price of grain grinder, you are welcome to contact us.
